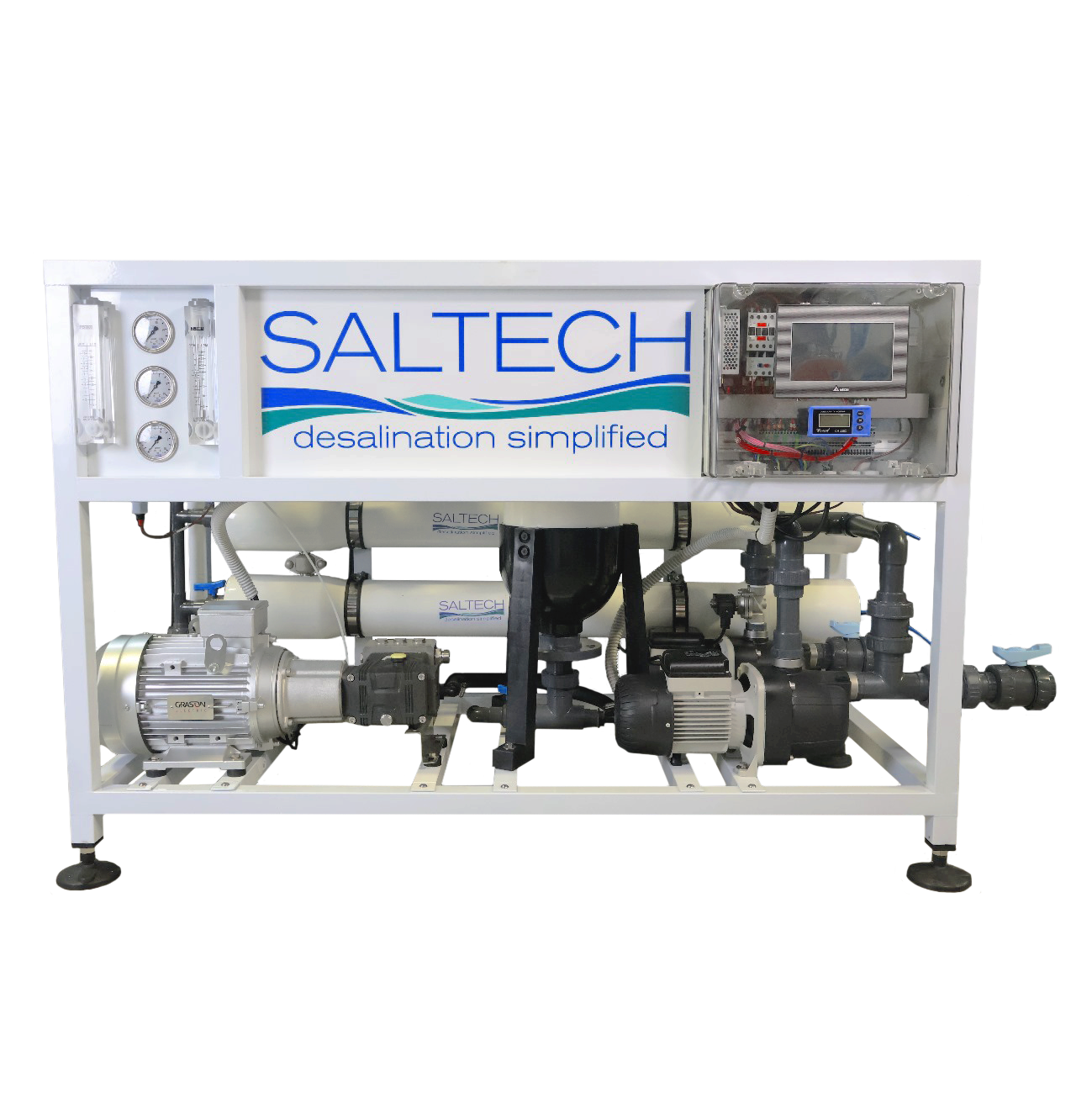

Torrent Marine 4040L

(200lts/hr – 1200lts/hr)

The Torrent Marine 4040L RO Desalination system is a powerful and versatile water purification solution capable of producing an impressive 200 to 1200 liters of clean, purified water per hour.

Product description

The TORRENT Marine 4040L is a versatile system designed for both land and marine applications. Its target market includes small industries, private residences, boutique lodges, gated estates, larger commercial vessels, and similarly sized private developments.

Despite its straightforward design, it incorporates all the essential features required by the industry. The open-frame construction allows for easy access, making maintenance straightforward and efficient.

Our custom design options give clients the flexibility to choose their preferred setup and operation, with the option of automated or manual controls tailored to specific applications. The system delivers production capacities ranging from 4 800 to 28 800 litres per day (LPD).

Technical Specifications

SYSTEM OVERVIEW
Production
Feed TDS range
Typical salt rejection
Power Supply
90lts/hr – 800lts/hr
<40 000 ppm
95 – 99%
220v – 380v / 50Hz – 60Hz
FEEDWATER CONDITIONS
Temperature
TDS
SDI
pH
Free Chlorine
Iron
Manganese
5 – 35 º C
40 000 ppm
< 5
-9
Undetectable
< 0.1ppm
< 0.05 ppm
MATERIAL OF CONSTRUCTION
Frame Work
High-pressure piping
Low-Pressure piping
Pressure Vessels
Pumps
Control Box
Pre-filter housings
SS304 epoxy coated
SS316
UPVC Class 16
First Line 1000psi
SS316 / Plastic
IP65
20” Slim Line
INSTRUMENTATION
Conductivity
Flow Meters
HP Pressure Guage
LP Pressure Guage
Pressure switch
Controller
Permeate
Permeate / Brine
Pre & Post Membranes
Pre & Post Filters
LP & HP Switches
OS3020

*Specifications and dimensions are subject to change
